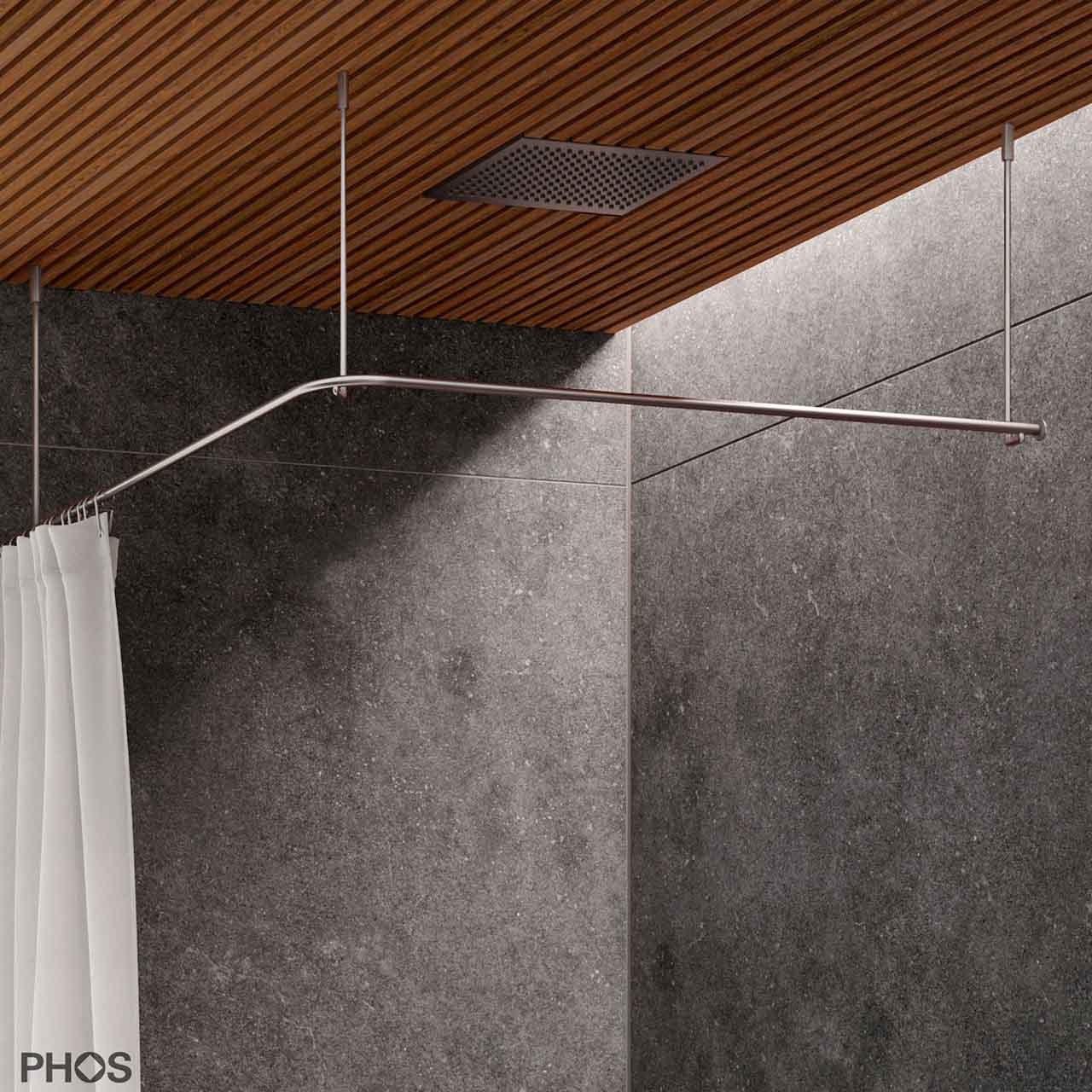

Custom-made: Corner shower rod in L shape, for bath tub, shower tray and barrier free walk in showers. Including shower curtain holder, optionally adhesive - without drilling - or classic wall mounted with ceiling holder.

Angled shower curtain rails for flat shower trays and bathtubs with different dimensions. The correct size of shower curtain rod should spring back at least 5cm, so that the flowing along the shower curtain will always drip within the area provided for it. There are two different curves for the corner of the shower rod. Classic with a 14mm radius for an angular look or with a 70mm radius, which allows the shower curtain hook to be pulled comfortably around the curve. Both versions, in combination with the shower curtain hook HKD 12let the shower curtain move freely, without stopping, around the compatible ceiling rod.

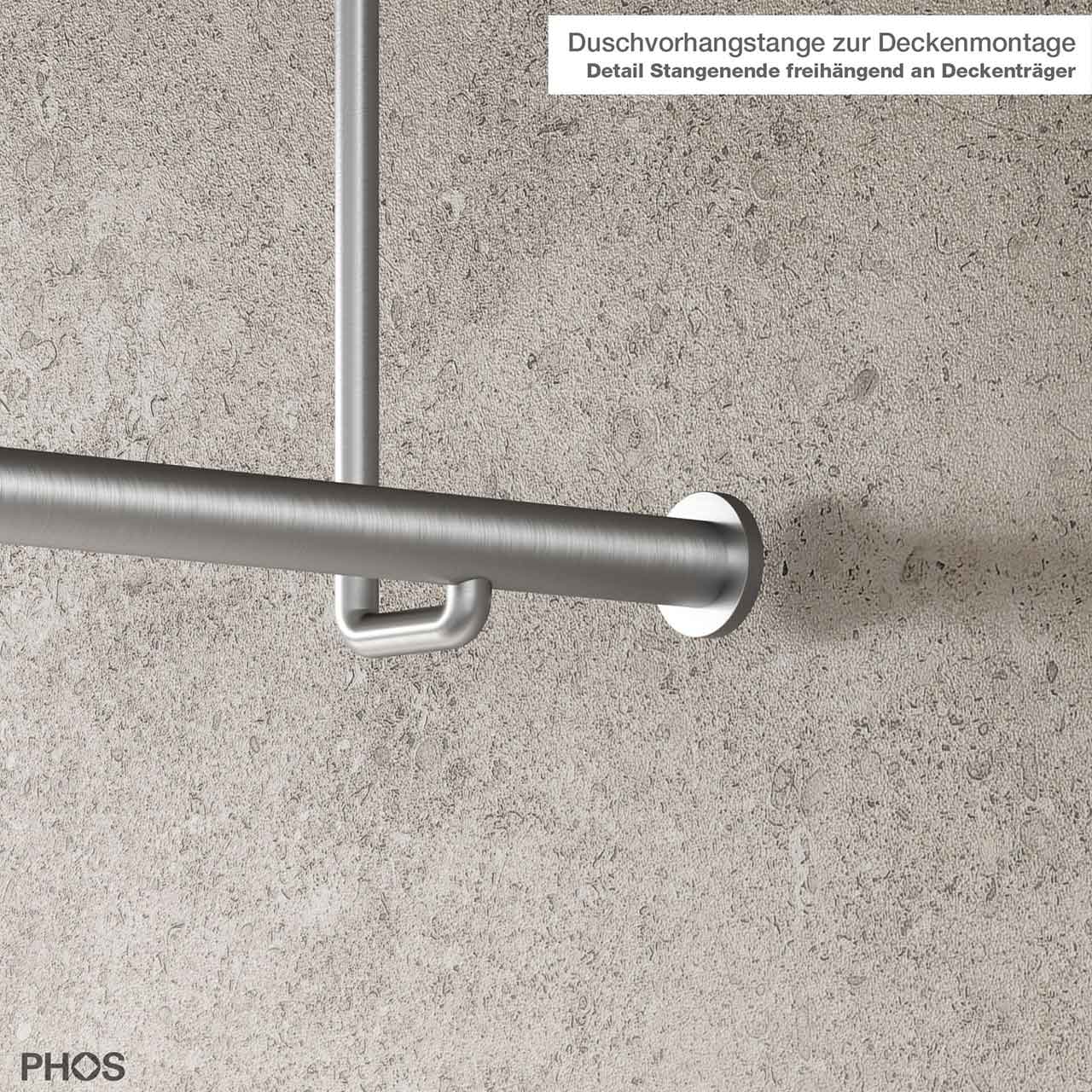

Includes two shower rod mounts for the wall and a standard shower curtain ceiling rod of 40cm length (adjustment possibility ± 10mm). With the correct shower curtain rod height, the lower edge of the shower curtain should hang about 1-2cm above the floor in an open ground-level shower. Simplified calculation: Room height - shower curtain length - 4cm= length of ceiling bracket to the axial dimension of the shower rod. In the bathtub the shower curtain just need to hang 15cm inside.

With the - never drill again - Adhesive adapter(not included) you can also install the shower curtain rail to tiles without drilling. If you want to mount the shower curtain rail on glass you should use theadhesive plate for glass. Due to the crystal clear UV glue, it is more suitable for connecting the shower curtain rod on glass, like on a no door walk in shower enclosure. Since the holes to be drilled have a diameter of 8mm and partially fray the holes, we recommend cover rosettes for a clean finish of shower rod and wall or shower curtain rods ceiling connection.

The shower curtain rod will be delivered without shower curtain hooks. The required number depends on the selected shower curtain width.

Recommended shower curtain width (standard dimensions at ShowerCurtain365.com). Intermediate dimensions are made to measure.

All measures in centimeters. 1cm=2,54"

shower tray / bathtub

(L1 x L2 in cm) 1cm=2,54"

shower rod L shape

(L1 x L2 in cm) 1cm=2,54"

width with 1 shower curtain

(in cm)

width with 2 shower curtains

(in cm)

Shower tray 80x80 (32"x32")

75x75

180Combination 100 + 100

Shower tray 80x95 (32"x38")

75x90

200Combination 120 + 100
Shower tray 85x95 (34"x38")80x90200Combination 120 + 100
Shower tray 90x90 (36"x36")85x85200Combination 120 + 100
Shower tray 100x100 (40"x40")95x95220Combination 120 + 120
Shower tray 85x105 (34"x42")80x100200Combination 120 + 120
Shower tray 95x105 (38"x42")90x100220Combination 120 + 120
Shower tray 85x125 (34"x50")80x120220Combination 160 + 100
Shower tray 90x120 (36"x48")115x85220 Combination 120 + 120
Shower tray 120x100 (48"x40")115x95240Combination 140 + 140
Shower tray 120x120 (48"x48")115x115260Combination 140 + 140
Shower tray 140x90 (56"x36")135x85260Combination 140 + 140
Shower tray 75x165 (30"x66")70x160260Combination 200 + 90

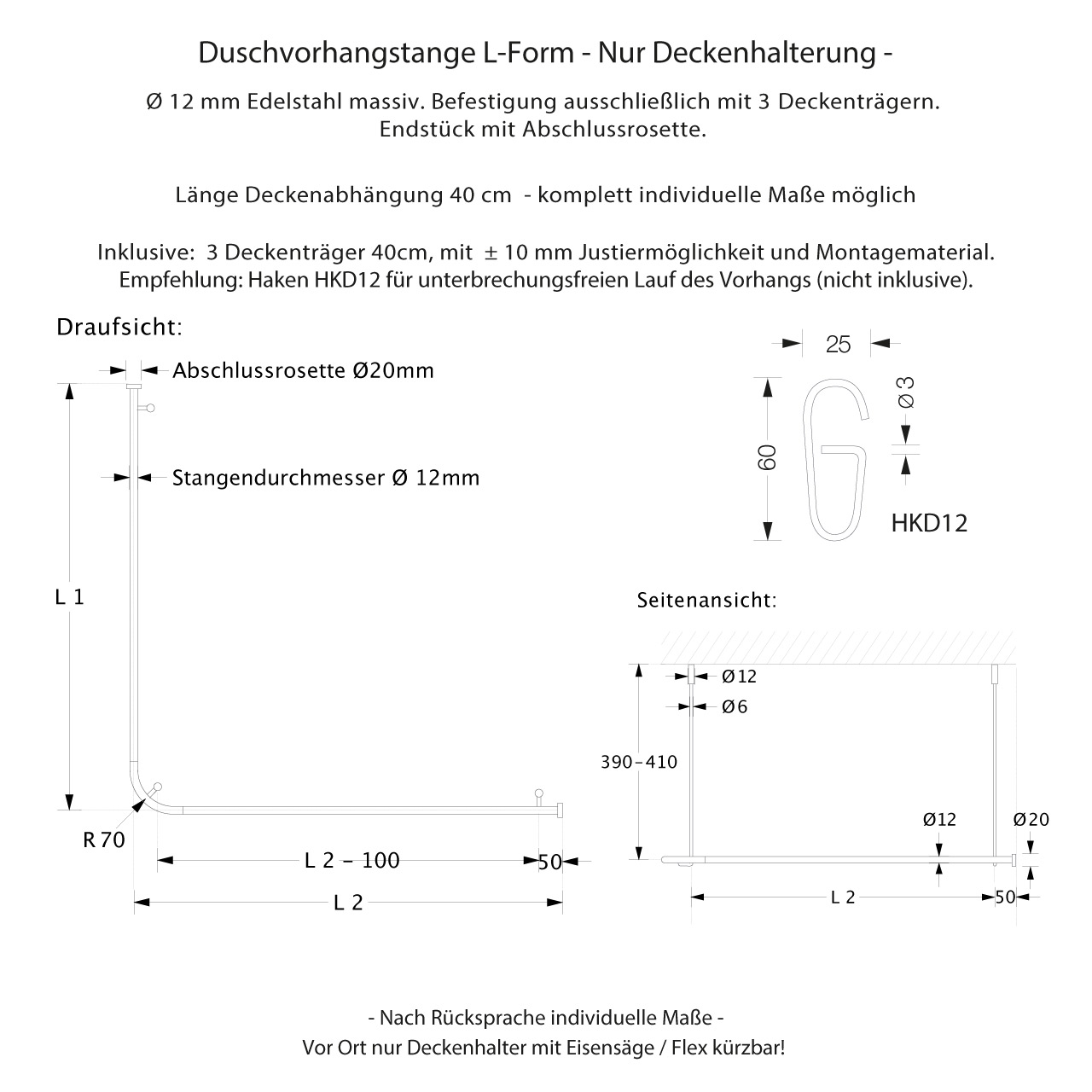

Diameter stainless steel shower curtain rail L shape: 12 mm

Shower curtain ceiling rod diameter: 6 mm

Material: 100% stainless steel. Top notch quality -Made in Germany-

Due to frequent requests, we have summarized here popular special shower curtain rod sizes. These sizes are made to order. The delivery time will be extended and the shower rods are not exchangeable as a custom-made product. For the shower curtain rod, which is polished by hand, a further time expenditure of approx. one week must be expected. Only the shower curtain rod holder can be shortened with a hacksaw. Individual shower curtain rod dimensions are gladly realized after consultation.

Our conclusion: Here you will find the best shower curtain rails which are currently available! Every single part is well thought-out and precisely handmade. After the production by hand, the surfaces are either sanded with a matt shimmer or polished to a high gloss. Stainless steel is the best material for shower curtain rails and first choice if you are looking for an uncomplicated but efficient hygienic measure, which harmonizes perfectly as shower curtain holder.

Due to the size of the shower curtain rod, delivery to a packing station is not possible!

If you have any further questions, please contact us.

Made to Measure: on request
Material: V2A stainless steel
Shower Hooks: HKD12, not included
Surface: glossy polished, matt grinded
